I/O Pins
Inputs and outputs, usually shortened to I/O, are the bread and butter of microcontroller functionality. Sure, you have your more complex busses and signals like I2C and PWM, but, at the end of the day, a lot of times you just need to read or write a signal on a pin.
This doc page will explain how to use the basic I/O functionality of Mbed, and cover important concepts about how pins are named and assigned.
Generally speaking, there are four kinds of I/O:
- Digital inputs
- Digital outputs
- Analog inputs (ADCs)
- Analog outputs (DACs)
Mbed has several different classes that allow access to these functions, and we'll go through them all in this how-to guide.
Digital I/O
Digital Outputs (DigitalOut)
If all you need to do is set a pin to high or low in code, then the DigitalOut class is your friend. This class must be constructed with a pin name and, optionally, a default state for the pin. Once constructed, it will make the pin output the value.
DigitalOut myOutputPin(PA_0); // Creates a digital out on PA_0 that defaults to low
DigitalOut myDefaultHighPin(PA_0, 1); // Creates another digital out that defaults to high
Pin Names
The valid pin names that you can pass to Mbed objects like DigitalOut vary by MCU. The easiest way to find out the list of valid names is to look at the PinNames.h file for your target. You can find this file by navigating to the definition of the PinName enum via your IDE.
Also, documentation for your target may provide a list of the valid pin names and what functions they offer.
In this page we will be using STM32-style pin names (e.g. PA_0), but there are other styles in use by different targets.
DigitalOut provides the write() function which writes a value to a pin:
Mbed also overloads operator= for DigitalOut, so you can simply set the pin equal to 0 or 1 to accomplish the same thing:
If we wish to toggle the pin, there is also the read() function which returns the current state. Suppose we wanted to make a program that toggled the state of the board LED once a second. We could do that like:
LED Pins
Most Mbed boards provide at least one LED, and #define LED1 to be an alias for its pin name. However, not every board does this, so this code might need modifications depending on your setup.
Also note that the LED might be active high (turns on when the pin is high) or active low (turns on when the pin is low), so you will either need to consult your board schematic or do an experiment to determine this.
Digital Inputs (DigitalIn)
What if you want to read the value of a pin, instead of writing it? That's where DigitalIn comes in. This class, once instantiated, allows access to the value of a pin.
DigitalIn myInput(PA_1);
if(myInput.read()) {
printf("Pin is high!\n");
}
else {
printf("Pin is low!\n");
}
DigitalIn also implements a cast operator to integer, so it can be directly used in many contexts that expect an integer or boolean value, such as an if statement:
Pullups/Pulldowns

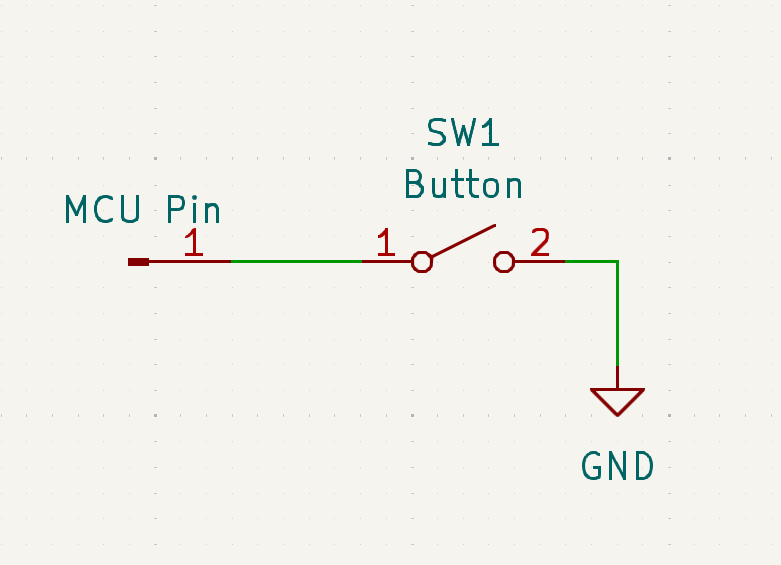

Pullup and pulldown resistors are very useful to control the state of an input when nothing is directly driving it. For instance, suppose you connected an I/O pin of your Mbed board to a button, with the other side of the button connected to ground.
When the button is pressed, the MCU pin will be connected to ground. But what about when the button is NOT pressed? In this case, the MCU pin will be floating, and its state will not be super well defined. In a naive circuit, the pin will just pick up random noise from the circuit and the environment, and its state will constantly change. To prevent this, some MCUs implement a pulldown/pullup/keeper circuit on I/O pins by default, so you won't get the random noise, but the circuit may still not work as intended.

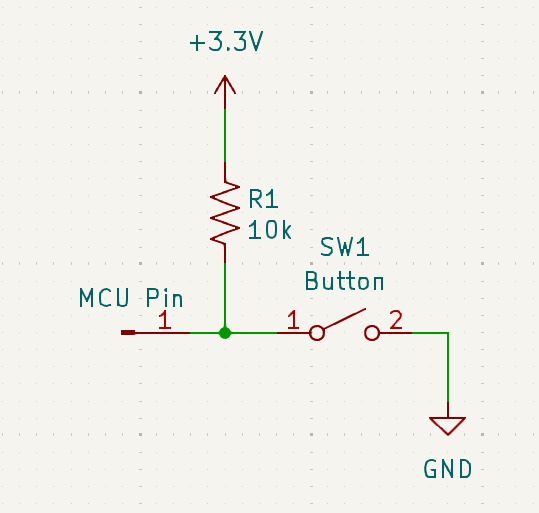

To fix this, we need to "pull up" the MCU pin to the I/O voltage with a resistor:
This ensures that if the button is not pressed, the pin will read a high value.
As this is a very common problem to run into, most MCU manufacturers include built-in pullup and pulldown resistors on each pin, so that you don't need a physical one on your board.
In Mbed, these resistors can be enabled by passing a pin mode value to the second argument of the DigitalIn constructor, or by calling the mode() function after creating the pin.
DigitalIn inputWithPullup(PA_2, PullUp);
DigitalIn inputWithPulldown(PA_3);
inputWithPulldown.mode(PullDown);
Resistance Values
The actual values of the pullup and pulldown resistors vary by target MCU, so consult your target documentation and the MCU datasheet for the actual values. In general, these resistors have very large tolerances, so they should not be used in situations where an exact resistance value is needed for the circuit to work.
Bidirectional I/O (DigitalInOut)
I/O pins are fully capable of changing their direction at runtime, and can be switched from an input (potentially w/ a pullup) to an output at any time. This functionality can be accessed via the DigitalInOut class.
This class provides access to the full GPIO API and allows controlling the full state of one GPIO pin. For example, suppose two digital pins are connected together with a wire. We can use DigitalInOut to send values back and forth:
DigitalInOut inOut1(PA_1); // defaults to input with default pullup
DigitalInOut inOut2(PA_2, PIN_OUTPUT, PullDefault, 0); // Set as output low
inOut1.read(); // returns 0
inOut2 = 1;
wait_us(10); // Give it some time for the signal to propagate
inOut1.read(); // returns 1
// Switch directions of pins. Switch the output pin first so we don't have two output pins fighting with each other.
inOut2.input();
inOut1.output();
inOut1 = 1;
wait_us(10);
inOut2.read(); // returns 1
Digital Glitches
Currently Mbed does not provide a single function to change the direction of a pin and set its value in a glitch-free manner. So, for example, if changing a pin from an input to a logic high output, the pin may change from input to logic low output for a few microseconds, and then change to logic high.
Fixing this issue is something we'd love to work on in the future.
Open-Drain Operation
As you may have realized, "normal" bidirectional pins aren't great for communicating information between multiple chips, because there needs to be some kind of prior agreement on who is driving the pin at any one time. Otherwise, you could cause a potentially damaging short by having one chip drive the pin high and another drive it low.
Open-drain is a convention for I/O pins that solves this problem. When a pin is in open-drain mode, it has only two states. Writing a 1 to the pin sets it to high-impedance mode (potentially with a weak pullup), and writing a 0 to the pin writes a logic low to it. When the pin is read, it returns the electrical state rather than the configured state, so if you are writing a 1 but see the value as 0, then you know that somebody else is setting it to 0.
This convention (plus an external pullup resistor) nicely solves the problem of high versus low conflicts. If all connected chips are writing a 1, the signal stays as logic high. If one or more chip writes a 0, then the signal changes to logic low. And no matter what, you can never create a short no matter which devices are outputting high and low.
Here's an example of using DigitalInOut in open drain mode to communicate between two pins that are connected together:
DigitalInOut pin1(PA_1, PIN_OUTPUT, OpenDrain, 1);
DigitalInOut pin2(PA_2, PIN_OUTPUT, OpenDrain, 1);
// With neither pin set low, we should see both pins reading high
pin1.read(); // returns 1
pin2.read(); // returns 1
// Outputting a low on one open drain pin should bring both pins low
pin1 = 0;
wait_us(10); // Give it some time for the signal to propagate
pin1.read(); // returns 0
pin2.read(); // returns 0
Open-Drain Pullup Resistors
On some targets, the OpenDrain pin mode automatically enables a pullup resistor. On other targets, you would need to connect an external pull-up resistor to run this example.
Bus I/O
If you need to work with multiple I/O pins at once, Mbed provides the BusIn, BusOut, and BusInOut. These classes work nearly identically to DigitalIn, DigitalOut, and DigitalInOut except that they work with multiple pins at a time (up to 15).
Read and write operations return binary numbers, with bit 0 corresponding to the first pin passed in to the constructor, bit 1 corresponding to the second pin, etc.
BusOut myBus(PA_0, PA_1, PB_0, PB_1)
myBus = 0b1010; // Writes a high to PB_1 and PA_1 and a low to PB_0 and PA_0
Binary Literals
This example uses a relatively new feature of C++, which is the ability to write out binary numbers in code using the 0b prefix. 0b1010 is equivalent to 0xA or 10.
Bus I/O is useful for implementing parallel interfaces, where the bits of a number are transferred via a group of GPIO lines.
Limitations of Bus I/O
The Bus[In/Out] classes are not "true" multi-pin I/O -- they are implemented as pure wrappers around arrays of Digital[In/Out] classes. This is convenient because they can work with any pins, regardless of what I/O port the pins are on. However, this means that all the pins aren't written or read at the exact same time.
This means that the Bus I/O classes are not currently suitable for implementing high speed parallel busses (~MHz clock rate). There are some options to fix this in Mbed, but for now if you need this capability you'll have to access the I/O registers directly.
Interrupts
Analog Inputs
If you want to read an analog signal on your target board, you'll need to do things a bit differently. Analog inputs can be read using the AnalogIn class, which is a wrapper around your chip's Analog-Digital Converter (ADC) peripheral.
We'll first briefly go over how ADCs work and what you should be aware of when using them, and then we'll show how to actually use the ADC in Mbed!
ADC Basics
Bits
ADCs are often referred to as n-Bit, e.g. 12-bit or 16-bit. This refers to how many bits of binary number your ADC produces. For example, a 12-bit ADC can produce numbers between 0 and 4095 (2^12-1), and a 16-bit ADC can produce numbers between 0 and 65535 (2^16-1).
Broadly speaking, an ADC with more bits has higher resolution and produces a more precise output (though that's not the complete picture, as we'll see below).
ADC Types
There are three types of ADCs in common usage: Sigma-Delta, Flash, and Successive Approximation Register (SAR).
Sigma-Delta
Sigma-Delta ADCs have the highest resolution of all types, but are relatively slow to operate and are almost never seen integrated into microcontrollers.
Flash
Flash ADCs work by essentially comparing the value against 2^n analog voltages using 2^n comparators for n bits. As you might imagine, this is the fastest type of ADC as it only takes one clock cycle to go from analog value to digital code. However, the circuitry required for a flash ADC grows exponentially with the number of bits, so they are rarely seen in resolutions above 8 bits. (more info here)
Successive Approximation Register (SAR)
SAR ADCs consist of a sample-and-hold circuit, a digital-analog converter, and a comparator, and they work using essentially a binary search. The sample-and-hold circuit latches the incoming analog value and keeps it stable. Then, a series of voltages are generated by the digital-analog converter and compared against the input. It starts with half the reference voltage, then 0.25x or 0.75x the reference voltage, etc. From there, the ADC does a binary search in order to narrow down the analog voltage to the nearest bit of the output code.
SAR ADCs are a good compromise option as they can be made with fairly high resolution without being too complex -- resolutions of 12 to 16 bits are common, which is enough for most real analog signals. Increasing the resolution (which is frequently software-configurable) does increase the conversion time, but SAR ADCs can still operate quite quickly -- sample rates between 100kHz and 10MHz are common.
The large majority of Mbed microcontrollers that have ADCs use SAR ADCs, so it's important to understand both the hardware and the software configuration in order to see how accurate your analog inputs really are.
Voltage References
Accuracy/ENOB
Conversion Time
Aliasing
Using AnalogIn
Analog Outputs
DAC Basics
Don't confuse analog outputs with PWM!
It's common to confuse a "true" analog output (a DAC) with a PWM output. These are not the same thing! A true analog output outputs an actual analog voltage, while a PWM output outputs a square wave that averages out into an analog voltage. It is possible to approximage an analog voltage using a PWM output, but you would need an external filtering circuit, and this comes with other downsides (limited current sourcing capability, voltage ripple, etc). Meanwhile, an actual DAC just gives you an exact analog voltage, no muss, no fuss.
And yet... the Arduino framework continues to mislead people about this to this day by referring to setting a PWM as an "analog write".
